LEEMAT Aerogel Blanket — LA650B Series


High Performance Insulation Blanket for Industrial Applications and Building & Construction Sector
 LEEMATLA650B Series Aerogel Blanket is a high performance insulation blanket composed of silica aerogel, which is the lowest thermal conductor in the world, and of glass fiber needled blanket, suitable for the industrial applications with a temperature range between -50to +650and for building & construction sector.
Being super low thermal conductive, hydrophobic yet vapor permeable, compression resistant and resilient, inorganic and inflammable profile, easy processing with reduced volume, and environmentally safe, LEEMAT LA650B Series Aerogel Blanket is the state-of-art product which is the perfect choice for those in need of the best insulation performance with minimum thickness while achieving minimum energy consumption.



Characteristics and Benefits

Superior Insulation Performance
2~5 times better insulation performance than traditional materials, achieving same and even better insulation performance with minimum insulation thickness
·Hydrophobic but Vapor Permeable
Water repellency and vapor permeability help to prevent Corrosion Under Insulation (CUI)
·Compression Resistant yet Resilient
Compression resistance and bounce-back allow recovering thermal performance after being compressed
·Inorganic and Inflammable Profile
Enables stable performance over long term while providing fire protection to objects
·Easy for Handling and Installation
Can be cut on site easily with conventional cutting tools to fit any specific shape or geometry
·Less Volume for Storage and Transportation
Less volume needed for insulation materials, sharply reducing volume and cost for storage and transportation
·Environmentally Safe
No respirable fiber content, directly landfill disposable

 Applications

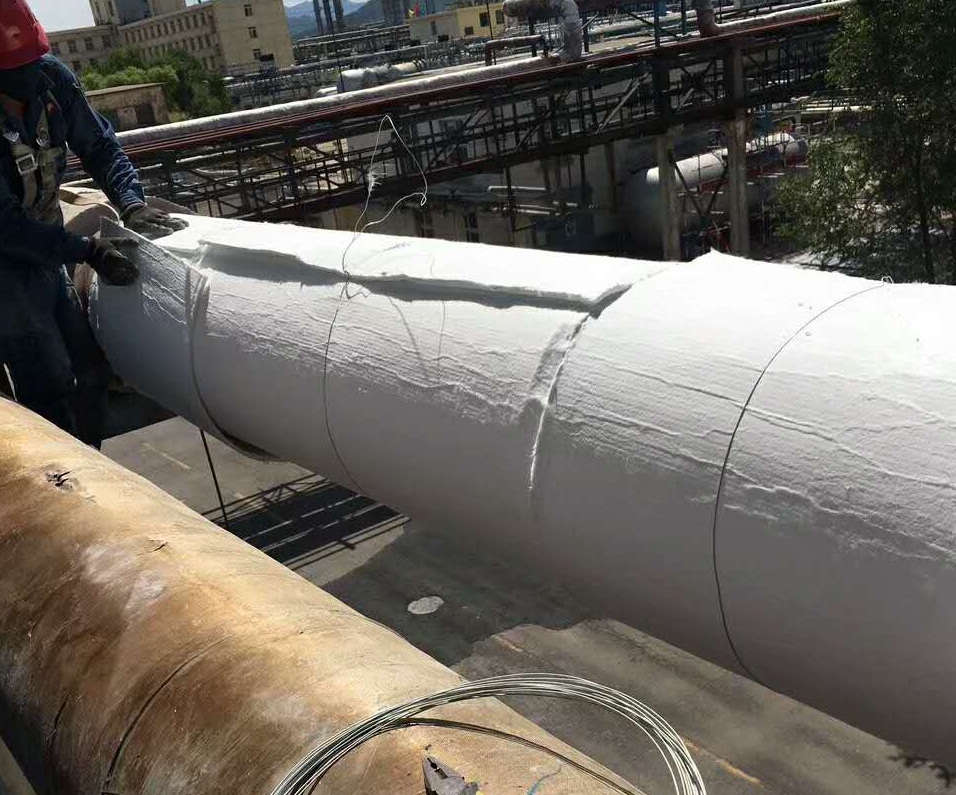

Steam pipelines in petroleum production, pre-insulated pipes
·Power plants, petrochemical plants, chemical plants
·Tanks and containers
·Ovens and furnaces
·Trains and vehicles
·Buildings and constructions

Physical Properties


Product Form Roll
Standard Thickness 3mm, 6mm, 10mm
Max Width 1500mm
Thermal Conductivity 0.021w/m· k (at 25)
Max Use Temperature 650
Density 200 ± 30 kg/m³
Hydrophobic Yes

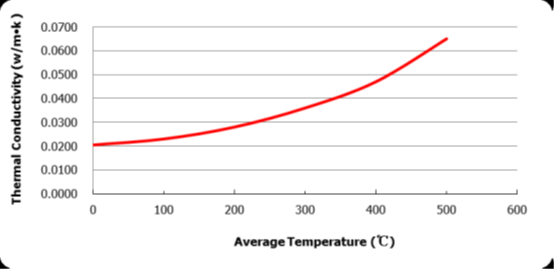

Thermal Conductivity

GB/T10294-2008 and GB/T10295-2008 Results
